Role
The arbiter daemon reads the configuration from the synchronizer. It divides it into parts (N schedulers = N parts), and distributes them to the appropriate Shinken Enterprise daemons. Additionally, it manages the high availability features: if a particular daemon dies, it re-routes the configuration managed by this failed daemon to the configured spare. Finally, it receives input from users or passive check results and routes them to the appropriate daemon. Passive check results are forwarded to the Scheduler responsible for the check. There can only be one active arbiter with other arbiters acting as hot standby spares in the architecture.

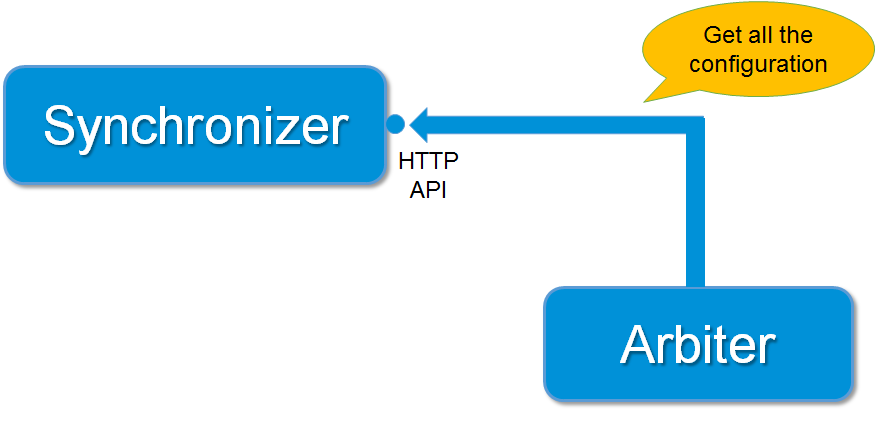

Connexion with the synchronizer
The communication between the arbiter and the synchronizer is done on the standard port of the synchronizer (7765).

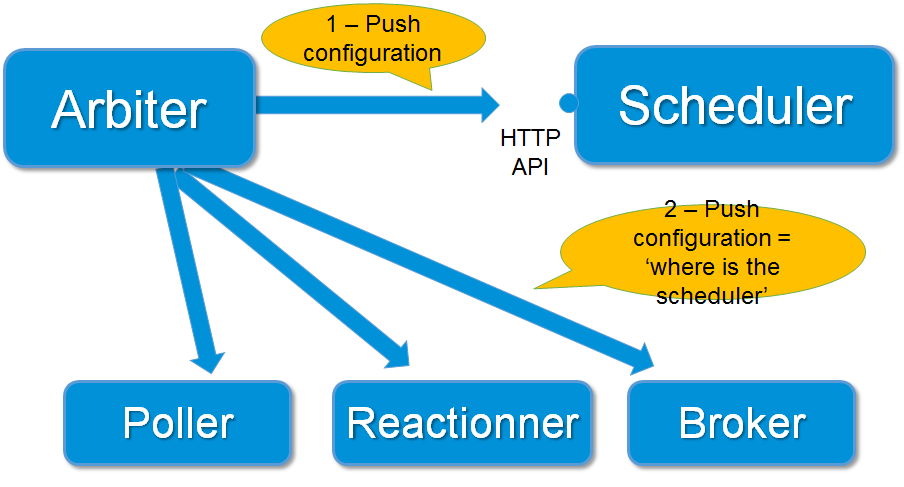

Connexion with the other daemons
This daemon is used to check and dispatch configuration to the other daemons, but not to the Synchronizer. The connexion is done on the standard port of the other daemons, and will use a HTTPS connexion if the other daemons are defined to use it.
Data
This daemon is hosting the whole system configuration into memory. It has access to all server names, address, types, and also the defined command used to check them.
It also hosts in memory the defined contacts that should receive notification for the defined hosts and services.
Arbiter connexion summary
| Source daemon | Destination | Port | Protocol | Note |
|---|---|---|---|---|
| Arbiter | Synchronizer | 7765 | HTTPS | |
| Arbiter | Scheduler | 7768 | HTTPS | |
| Arbiter | Poller | 7771 | HTTPS | |
| Arbiter | Reactionner | 7769 | HTTPS | |
| Arbiter | Receiver | 7773 | HTTPS | |
| Arbiter | Arbiter | 7770 | HTTPS | Only if there is an arbiter slave, and only from the master to the slave |
| Arbiter | Broker | 7772 | HTTPS |
Definition Format
| Property | Default | Description |
|---|---|---|
| arbiter_name | N/A | This variable is used to identify the *short name* of the arbiter with which the data will be associated with. |
| address | N/A | This directive is used to define the address from where the main arbiter can reach this arbiter (that can be itself). This can be a DNS name or an IP address. |
| host_name | N/A | This variable is used by the arbiters daemons to define which 'arbiter' object they are : all these daemons on different servers use the same configuration, so the only difference is their server name. This value must be equal to the name of the server (like with the hostname command). If none is defined, the arbiter daemon will put the name of the server where it's launched, but this will not be tolerated with more than one arbiter (because each daemons will think it's the master). |
| port | 7770 | This directive is used to define the TCP port used by the daemon. |
| spare | 0 | This variable is used to define if the daemon matching this arbiter definition is a spare one or not. The default value is *0* (master/non-spare). |
| modules | N/A | This variable is used to define all modules that the arbiter daemon matching this definition will load. |
| timeout | 3 | This variable defines how much time the arbiter will block waiting for the response of this daemon. |
| data_timeout | 120 | Data send timeout. When sending data to another process. |
| max_check_attempts | 3 | If ping fails N or more, then the node is considered dead. 3 attempts by default. |
| check_interval | 60 | Ping node every N seconds. |
| accept_passive_unknown_check_results | 0 | If this is enabled, the arbiter will accept passive check results for unconfigured hosts and will generate unknown host/service check result broks. |
Example Definition
define arbiter{
arbiter_name Main-arbiter
address node1.mydomain
host_name node1
port 7770
spare 0
modules module1,module2
}
