Description

This widget displays the list of the Root Problems linked to an element.

  • The widget title bar indicates:
    • the number of displayed problems.
    • the number of problems of the element.
    • the name of the reference element

  • In the list of root problems, each line displays:
    • Status and context
    • The name of the element



In the exemple, 2 hosts are the roots problems of the ERP status.

  • So first select the ERP via the configuration window
  • All elements that prevent the ERP to run correctly will  then will be displayed.

...

Panel

Image Modified

Usage

Opening the detail view of one of the root problem

Clicking on a line will open the detail panel (see Host Detail Panel chapter)

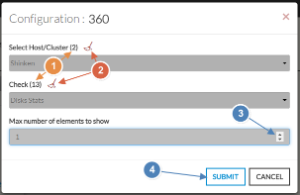

Configuration

  1. Select a host or cluster name in the first list.
    • The total number of hosts and clusters will be displayed near "Select Host/Cluster" (1).
    • If no host selected yet, the list of available hosts will automatically opened.
    • You can search (filter) for a host name, typing into the input on top of the list.
    • Youcan clean the current selection by clicking on the swipe icon (2).

  2. Once your element is selected, if you want to monitor a specific check, you just have to select check name inside the second list.

  3. You can set the maximum number of elements displayed in the list (3).

  4. When configured, press the SUBMIT button (4).

...

Panel



...

Image Added
