Description
The Status widget provides an overview of a host, a cluster or a check.
It will contain:
- The name of the element
- The Status and its Context (see Monitoring logic for more details)
- Notifications sent (in case an element becomes WARNING or CRITICAL)
- Notifications can be configured in Shinken Administration UI (see Notifications and Notification Way chapters)
- If some notification has been sent for this element, an envelope will be displayed with the number of notifications on the right.
|  |
- Only for hosts, it displays also the number of checks, sorted per status.
Red | Critical checks | Orange | Warning checks | Grey | Unknown checks | Green | Ok checks |
|  |
Usage
If the status refers to an element, a click on the widget will open the Detailed View Panel providing details on the element (see the Host Detail View chapter).
- For a host, clicking on one of the checks summary box, will directly open the Detail panel on the tab checks panel.
- The list of checks will be filtered to only display checks matching this status.
- To get the full list of checks, simply remove the filter ( See Checks Tab chapter).

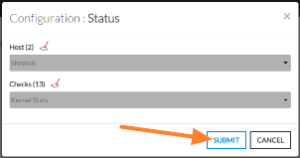

Configuration
- Select a host or cluster name in the first list.
- The total number of hosts and clusters will be displayed near "Select Host/Cluster" (1).
- If no host selected yet, the list of available hosts will automatically opened.
- You can search (filter) for a host name, typing into the input on top of the list (3).
- You can clean the current selected by clicking on the swipe icon (2).
- Once your element is selected, if you want to monitor a specific check, you just have to select check name inside the second list.
- When configured, press the SUBMIT button.
|
|
| | |
